Diamond core bit for dry used for concrete and brick walls
Diamond Dry Core Bit For Europe Market
Diamond Dry Core Bit For Europe Market
Short Description:
Mainly used for drilling walls such as brick, block, abrasive concrete and reinforced concrete.
Supreme quality, better dust removal, fast speed and long life.
The length and thread can be provided upon request.
Products Details

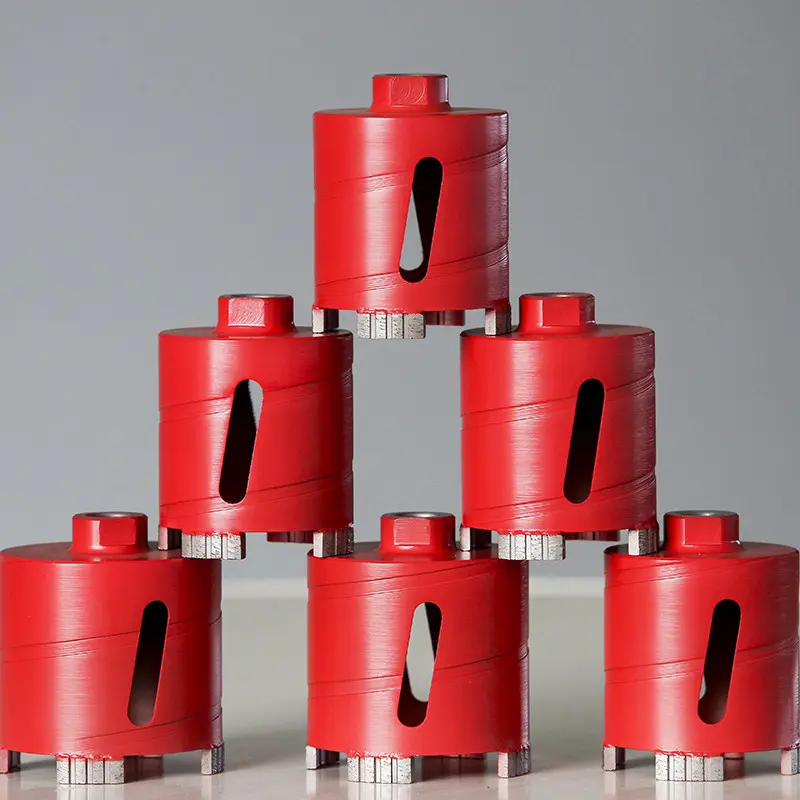

ROSCHEN Dry Diamond Core Bits for Europe Market
Diamond core bit for dry used for concrete and brick walls.
Specification, reasonable price, beautiful shape and have meet national standard. All of the advantages will be your first choice. It's assured for the smooth surface and will not be chatter when used. The goods can get effective result at anywhere you need to use diamond core bit.
Diamond Core Bit Specification
| Diameter | Effective Length | Segments size | Segment Qty. | Segment shape | Thread |
| 32mm | 150mm | 20*3.5*10 | 3 | Turbo | M16 |
| 36mm | 150mm | 20*3.5*10 | 3 | Turbo | M16 |
| 37mm | 150mm | 20*3.5*10 | 3 | Turbo | M16 |
| 47mm | 150mm | 24*3.5*10 | 3 | Turbo | M16 |
| 52mm | 150mm | 24*3.5*10 | 4 | Turbo | M16 |
| 57mm | 150mm | 24*3.5*10 | 4 | Turbo | M16 |
| 63mm | 150mm | 24*3.5*10 | 4 | Turbo | M16 |
| 65mm | 150mm | 24*3.5*10 | 4 | Turbo | M16 |
| 68mm | 150mm | 24*3.5*10 | 4 | Turbo | M16 |
| 72mm | 150mm | 24*3.5*10 | 4 | Turbo | M16 |
| 82mm | 150mm | 24*3.5*10 | 4 | Turbo | M16 |
| 92mm | 150mm | 24*3.5*10 | 4 | Turbo | M16 |
| 102mm | 150mm | 24*3.5*10 | 5 | Turbo | M16 |
| 107mm | 150mm | 24*3.5*10 | 5 | Turbo | M16 |
| 112mm | 150mm | 24*3.5*10 | 5 | Turbo | M16 |
| 117mm | 150mm | 24*3.5*10 | 5 | Turbo | M16 |
| 122mm | 150mm | 24*3.5*10 | 6 | Turbo | M16 |
| 127mm | 150mm | 24*3.5*10 | 6 | Turbo | M16 |
| 132mm | 150mm | 24*3.5*10 | 7 | Turbo | M16 |
| 142mm | 150mm | 24*3.5*10 | 7 | Turbo | M16 |
| 152mm | 150mm | 24*4.0*10 | 7 | Turbo | M16 |
| 156mm | 150mm | 24*4.0*10 | 7 | Turbo | M16 |
| 160mm | 150mm | 24*4.0*10 | 8 | Turbo | M16 |
| 162mm | 150mm | 24*4.0*10 | 8 | Turbo | M16 |
| 172mm | 150mm | 24*4.0*10 | 8 | Turbo | M16 |
| 182mm | 150mm | 24*4.0*10 | 9 | Turbo | M16 |
| 200mm | 150mm | 24*4.0*10 | 9 | Turbo | M16 |
![]()
Diamond Core Bit Advantage
1. Professional manufacture of diamond core bit
2. Product quality: Superior diamond, Good Quality steel, Prefect surface finish
3. Testing Report: ISO9001
4. Fast delivery: get your order when you need it
5. OEM/ODM is warmly welcomed
6. Convenient transportation: 2 hour to BeiJing international airport, 30 minutes to ShiJiaZhuang railway station
Payment Terms
1. 30% T/T advance, the rest paid before shipment
2. The other specific issues can negociate
3. Please confirm the details with us before do the prepayment
